Kelley

Blockade Dock Shelter

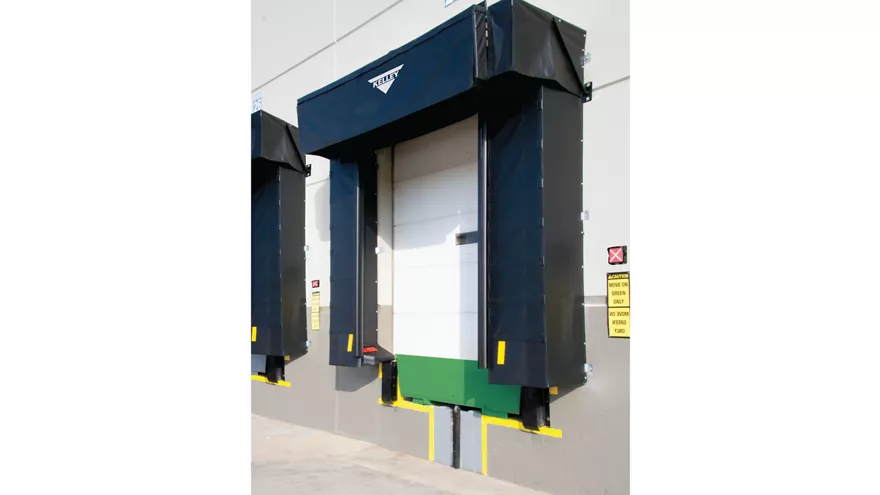

The Kelley Blockade™ model BDS-K Dock Shelter is specifically designed for the most demanding applications. It stands up to the test of air ride suspension and intermodal trailers creating more abrasive movements on the dock shelter, while also helping maintain consistent temperature control, avoiding energy loss, effectively sealing varying trailer configurations and meeting regulatory requirements. Blockade Dock Shelter features the exclusive Kelley SHARC™ (Super High Abrasion Resistant Compound) fabric for superior wear resistance. SHARC™ has been tested and certified to 40,000+ abrasion cycles – up to 10 times the abrasion resistance of the competitive fabrics tested.

Combines the flexibility of a dock seal with the full vehicle access of a dock shelter. Creates a tight seal between the building wall and the back of the vehicle, effectively keeping outside elements out of the warehouse. Combines the flexibility of a dock seal with the full vehicle access of a dock shelter. Creates a tight seal between the building wall and the back of the vehicle, effectively keeping outside elements out of the warehouse.

Blockade Dock Shelter Features

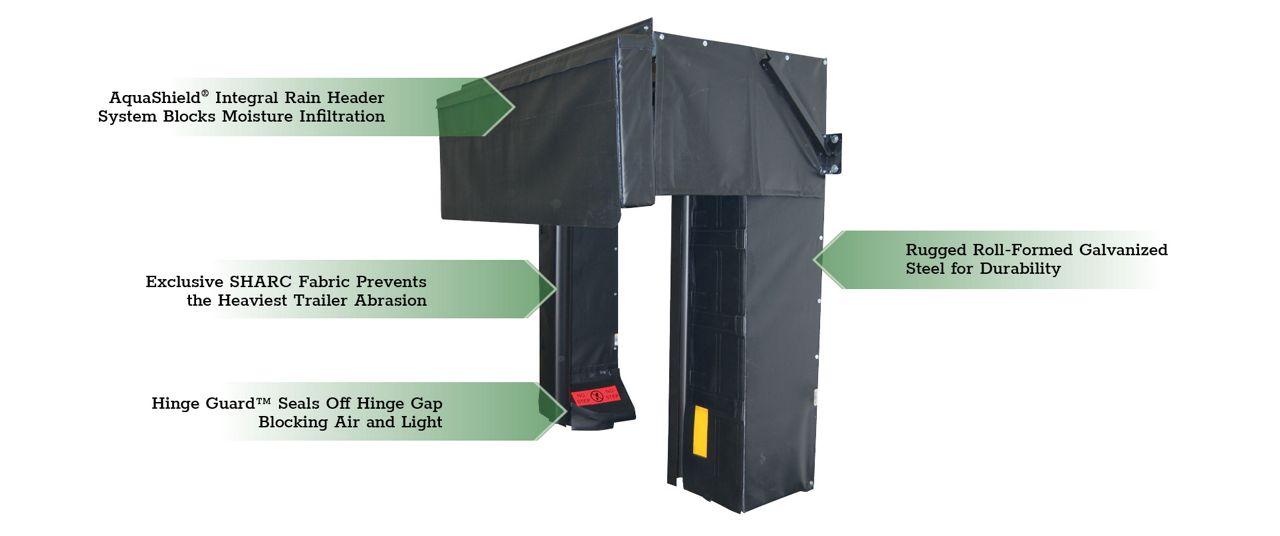

The Blockade Dock Shelter with green callout boxes highlighting key features.The Blockade Dock Shelter with green callout boxes highlighting key features.
    • Exclusive AQS-900 AquaShield® Integral Rain Header system effectively blocks moisture infiltration from the top of trailer
    • Exclusive Hinge Guard™ seals off hinge gap around swing-out doors, blocking air and light from entering the facility
    • Exclusive SHARC fabric on top and bottom wear panels prevents the heaviest trailer abrasion
    • Exclusive LightGuard™ connector curtain blocks air and light infiltration at overlap of side and head curtains
    • Structural, rigid head frame acts as a canopy while translucent top cover allows increased visibility and operating light
    • Exclusive roll-formed, galvanized steel framing extends product life and is superior to wood construction
    • Foam-filled side members provide protection from impact by off-center trailers
  • Blockade_Product_Spec(PDF, 971 KB)
    Kelley_Blockade_Dock_Shelter_Brochure(PDF, 291 KB)
    Kelley_Shelter_Brochure(PDF, 607 KB)
