aFX® Air-Powered Dock Leveler | kelley

The aFX^® Air-Powered Dock Leveler is the original Kelley air-powered dock leveler that revolutionized the industry. In addition to delivering safe, powered performance comparable to hydraulic dock levelers, the aFX features airDefense^® Technology — eliminating stump-out and providing a measure of free-fall protection. The aFX is also backed by the strongest warranty in the industry. Each aFX comes with a rated lifetime lip hinge assembly warranty, 10-year structural warranty, and a 5-year parts and labor warranty on the lifting system. The Kelley aFX ^® Air-Powered Dock Leveler is the preferred choice of warehousing operations worldwide.

AFX^® AIR-POWERED DOCK LEVELER DESIGN FEATURES

120V single-phase operation
Full operating range toe guards
Below-dock end-loading capability
Fixed rear hinge with no pinch points
Integral maintenance strut and lip support latch
Heavy-duty dock bumpers

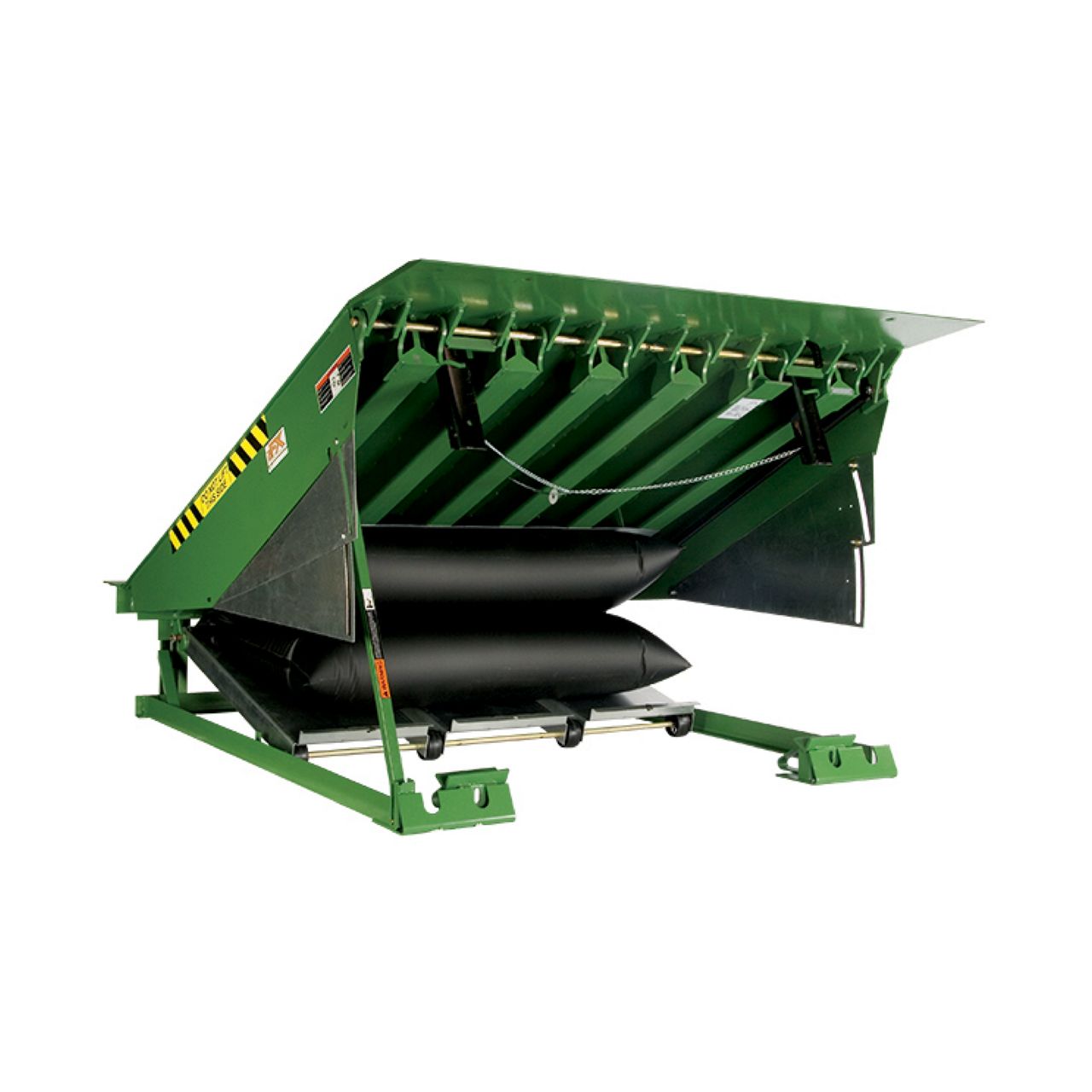

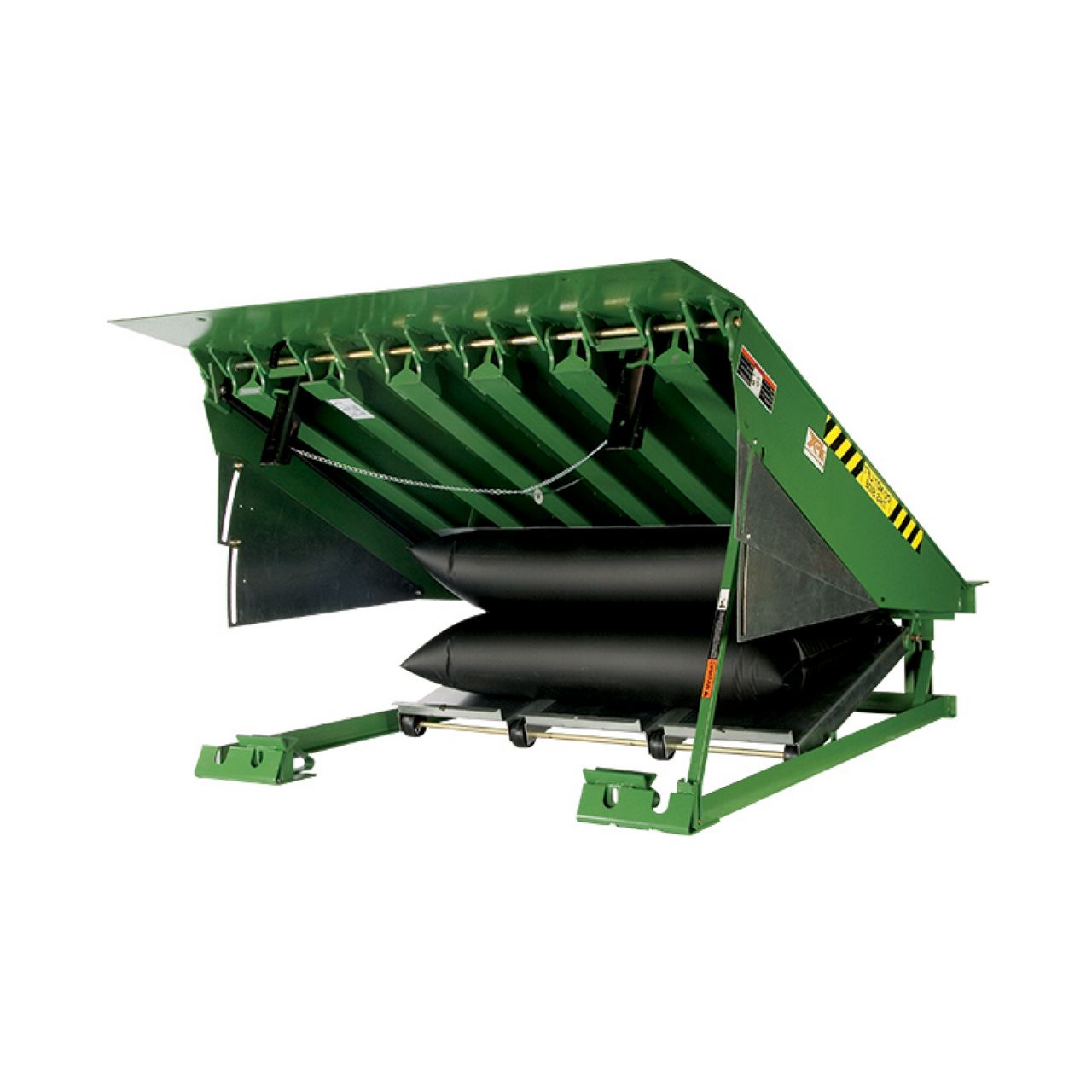

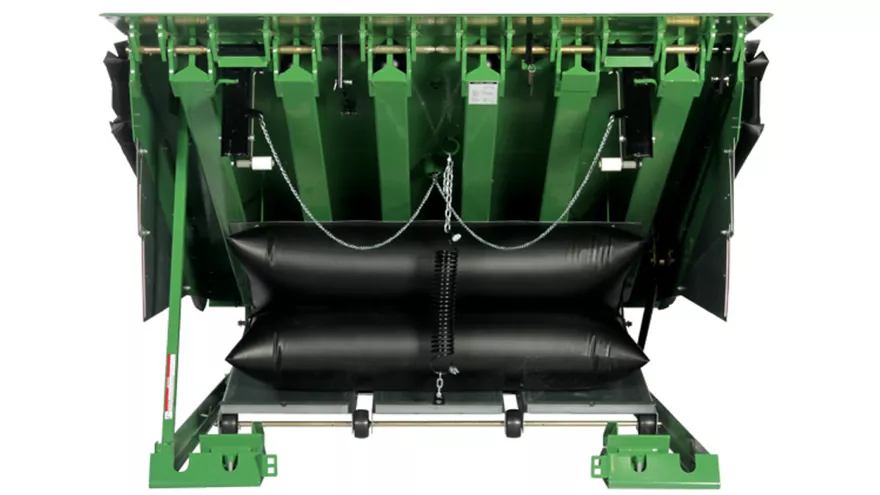

Air-powered pit-style loading dock leveler.

aFX^® Air-Powered Dock Leveler Features

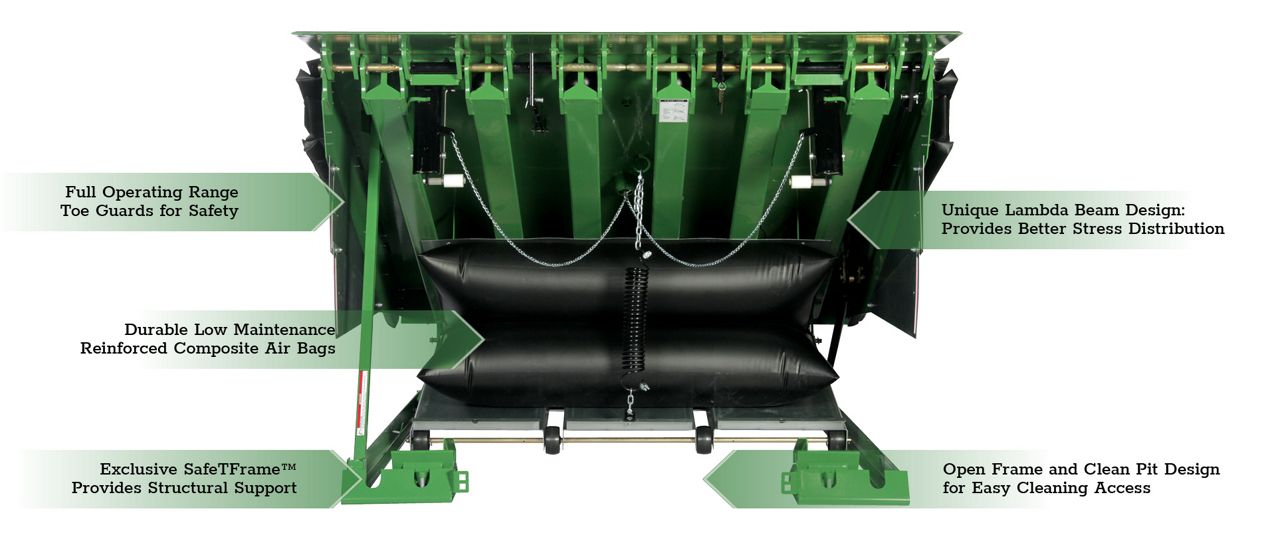

The aFX Air-Powered Dock Leveler with green callout boxes highlighting key features.

30K lb (13.6K kg)
35K lb (15.8K kg)
40K lb (18K kg)
45K lb (20.4K kg)
50K lb (22.7K kg)
Available Options
Brush Weatherseal
Spacer Kit for Existing & Sloped Pits
ENERGY GUARD^® Perimeter Weatherseal System
18” Lip (457 mm)
20” Lip (508 mm)
240V Single Phase
Non-Metallic Control Panel (Interlock Capable)
24” Pit Conversion (610 mm)
Spray Foam Insulated Deck
Abrasive Surface
Spray Metalize (Deck, Lip & Subframe Only)
Special Paint Color Lip Taper High Lip Crown
Bumper Options
B410-14
B610-14
B610-14F
VB420-11F
VB420-11
Steel Faced
