Kelley

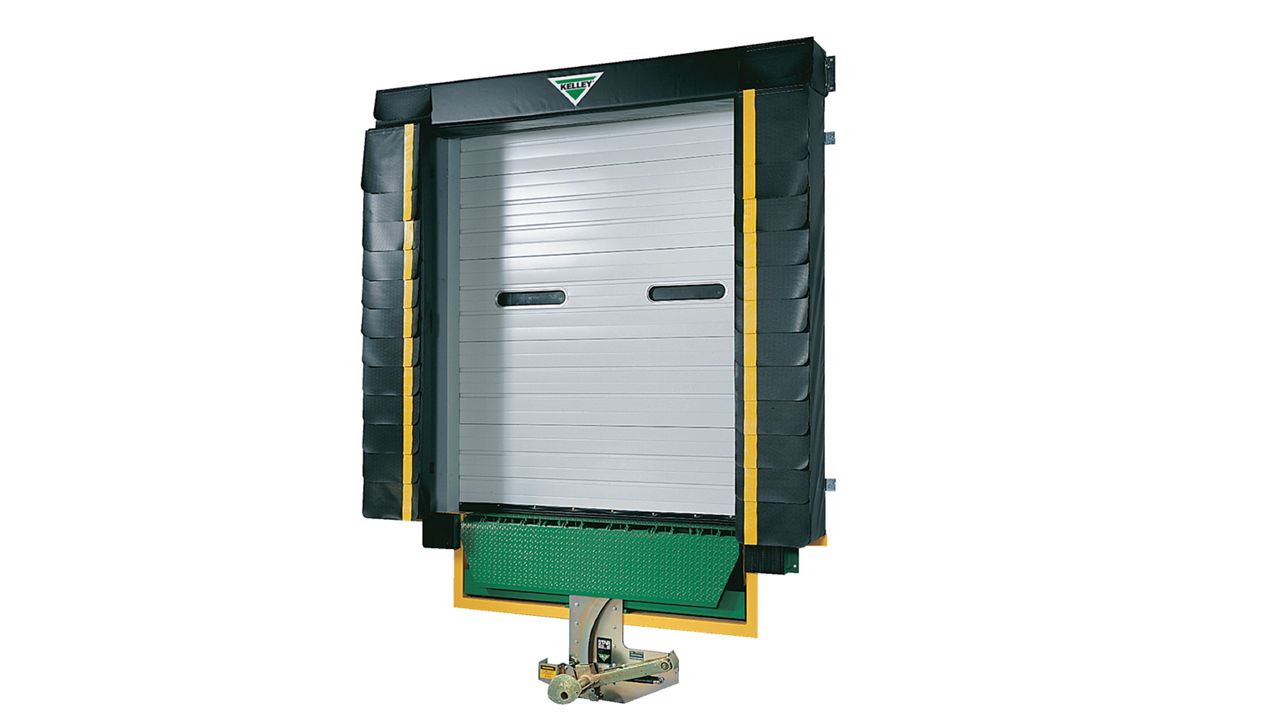

DSSL Series L-Shaped Side Pad Foam Dock Seal With Head Pad

Whether your trailer is 8′ or 8′ 6″ wide, the Kelley DSSL Series L-Shaped Side Pad Foam Dock Seal With Head Pad provides full-width access to the vehicle when docked at doors up to 9′ high. These extremely versatile dock door seals feature a compression foam head pad with L-shaped side pads and TufSteel® roll-formed galvanized steel framing. The side pads are equipped with triangular-shaped foam wedges that support the “L-shape”.

An L-shaped foam dock seal with a head pad, designed to provide a tighter seal for improved environmental control. Ideal for sealing around trailers with protruding sides or lift gates.An L-shaped foam dock seal with a head pad, designed to provide a tighter seal for improved environmental control. Ideal for sealing around trailers with protruding sides or lift gates.

DSSL Series L-Shaped Side Pad Foam Dock Seal With Head Pad Features

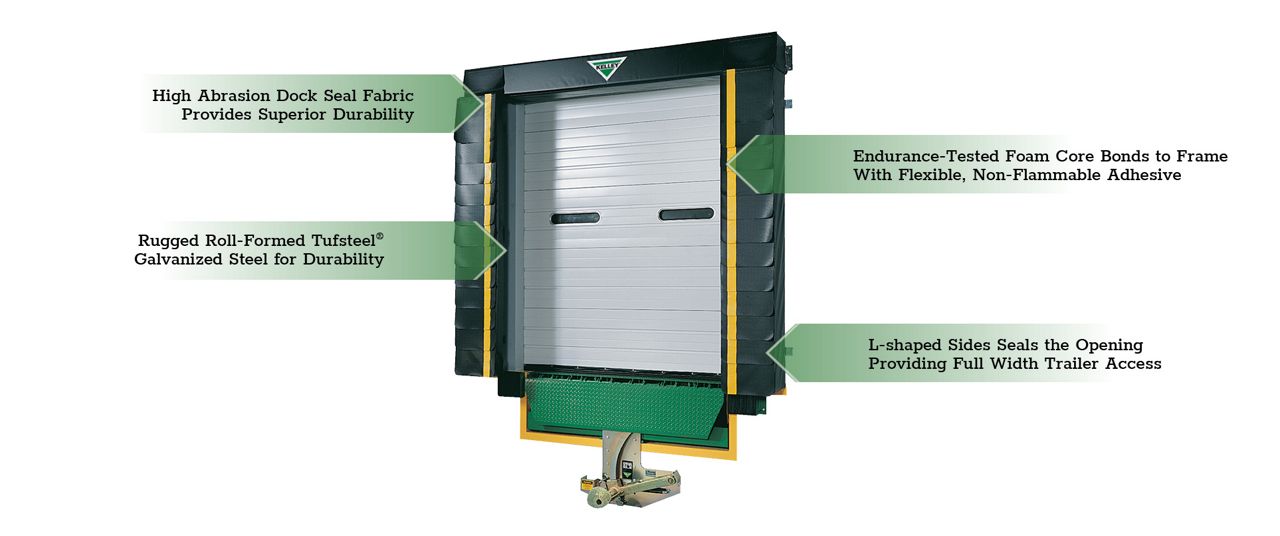

The Kelley DSSL Series L-Shaped Side Pad Foam Dock Seal with green callout boxes highlighting key features.The Kelley DSSL Series L-Shaped Side Pad Foam Dock Seal with green callout boxes highlighting key features.
    • L-shaped sides compress around the side of a trailer to create a seal, providing full width trailer access
    • Provides positive seal between internal and external environments
    • Endurance-tested foam core is continuously bonded to frame surface with flexible, nonflammable adhesive
    • Top of hood is tapered forward and supported with thick wall aluminum pipe
    • Hood curtain splits offer load relief and higher clearance
    • Highly resilient, open-celled polyurethane foam compresses easily to extend seal life
    • Roll-formed galvanized steel framing reduces pressure on building wall
    • All pads are vented for air and moisture release
  • DSSL_Long_Form_Specs(PDF, 91 KB)
    DSSL_L-PAD_Standard_Dock_Seal_Product_Specifications(PDF, 673 KB)
    Kelley Seals Brochure(PDF, 7 MB)
