HP Series Hydraulic Dock Leveler

The HP Series Hydraulic Dock Leveler is built for productivity and easy operation. Automatically operated with single push-button activation along with a mechanically activated lip, the HP Series’ unique Gravity Lip™ Extension automatically extends the lip in a smooth, quiet fashion as the dock leveler descends into the trailer.

HP SERIES HYDRAULIC DOCK LEVELER DESIGN FEATURES

  • Single-phase or three-phase power
  • Automatic retracting 60,000 lbs. (27,215 kg) structural dock-level support legs
  • Full operating range toe guards
  • Below dock end loading capability
  • Fixed rear hinge with no pinch points
  • Integral maintenance strut and lip support latch
  • Heavy-duty dock bumpers
  • Structural channel beams and high tensile steel safety tread plate
  • Structural members are fully welded to the front and rear header assemblies
  • Maintenance locking bar with lockout pin prevents use while maintenance or cleaning is in process
  • No leveler structure attached to pit floor for easy cleaning
  • Rear embed channel with five factory-welded hinges

HP Series Hydraulic Dock Leveler Features

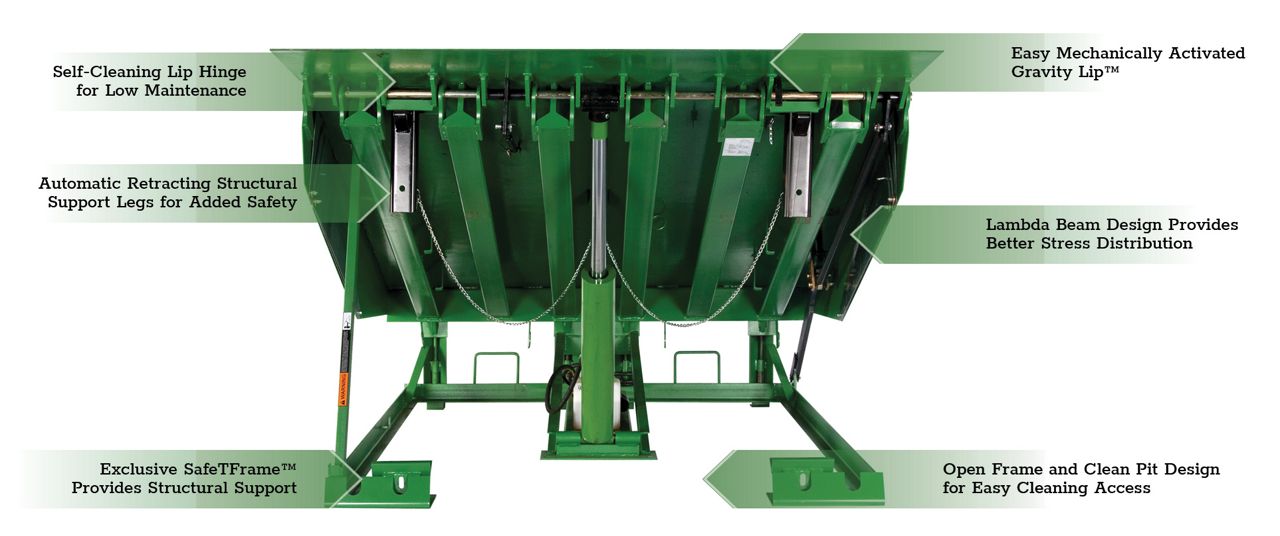

The HP Series Hydraulic Dock Leveler with green callout boxes highlighting key features.
