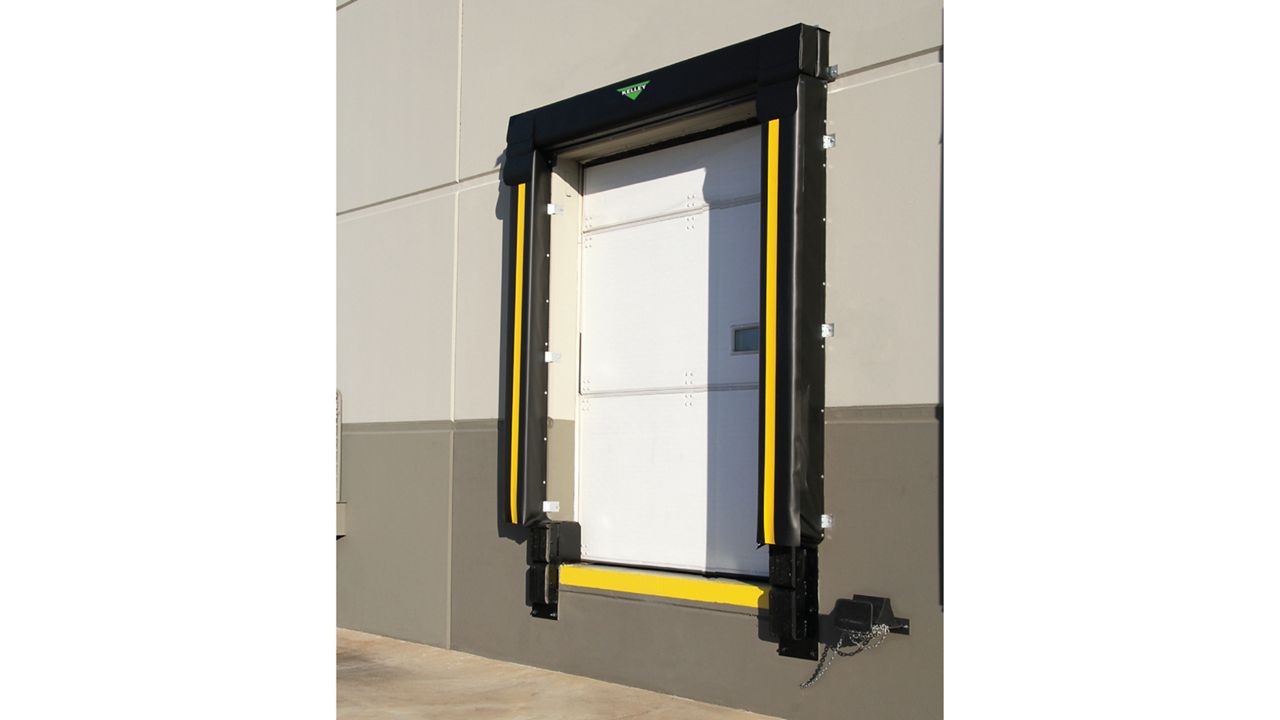

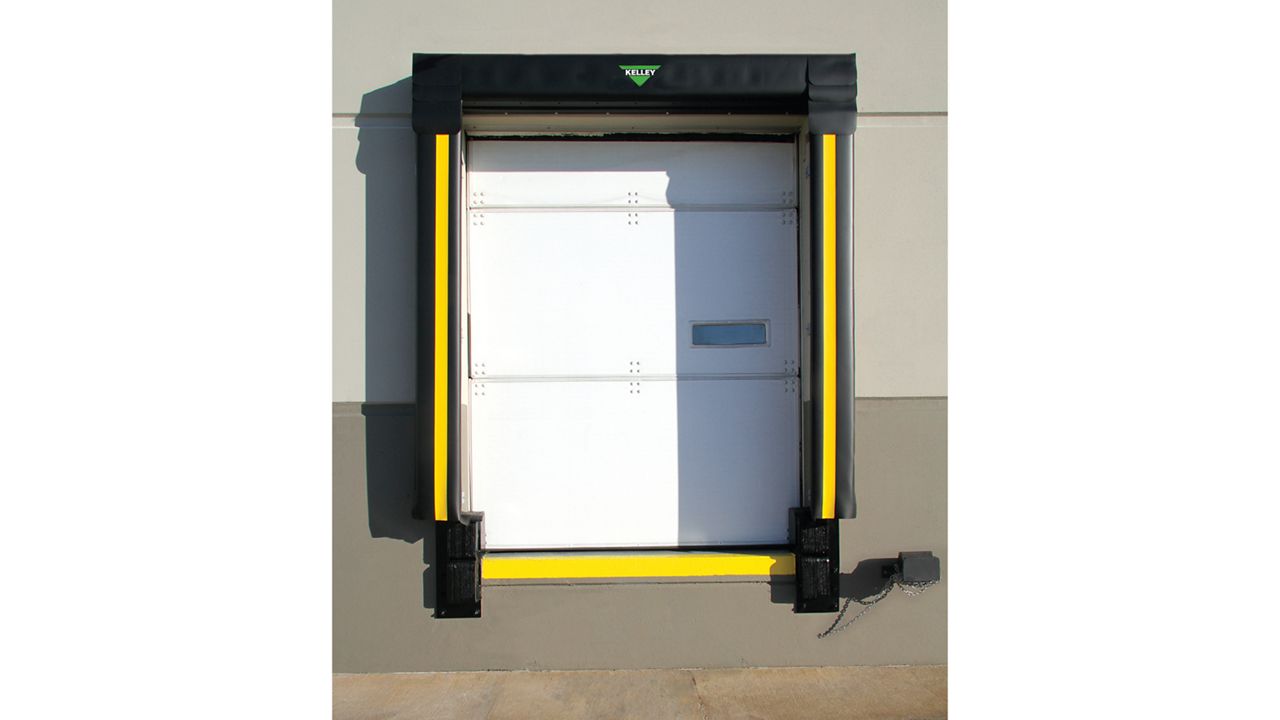

ADS-HP Series ArmorGuard High Abrasion Fabric Dock Seal With Head Pad

The Kelley ADS-HP ArmorGuard™ High Abrasion Dock Seal With Head Pad combats challenges at the loading dock such as more abrasive movements from air ride suspensions and intermodal trailers, sharp edges on trailers where they interface with the dock seal, and yard spotters creating a prying motion on the seal head pad – all while also providing superior environmental control. ArmorGuard is made with Kelley-exclusive SHARC™ (Super High Abrasion Resistant Compound) fabric, which has been tested and certified to 40,000+ abrasion cycles – up to 10 times the abrasion resistance of the competitive fabrics tested – for superior wear resistance.

ADS-HP Series ArmorGuard High Abrasion Fabric Dock Seal With Head Pad Features

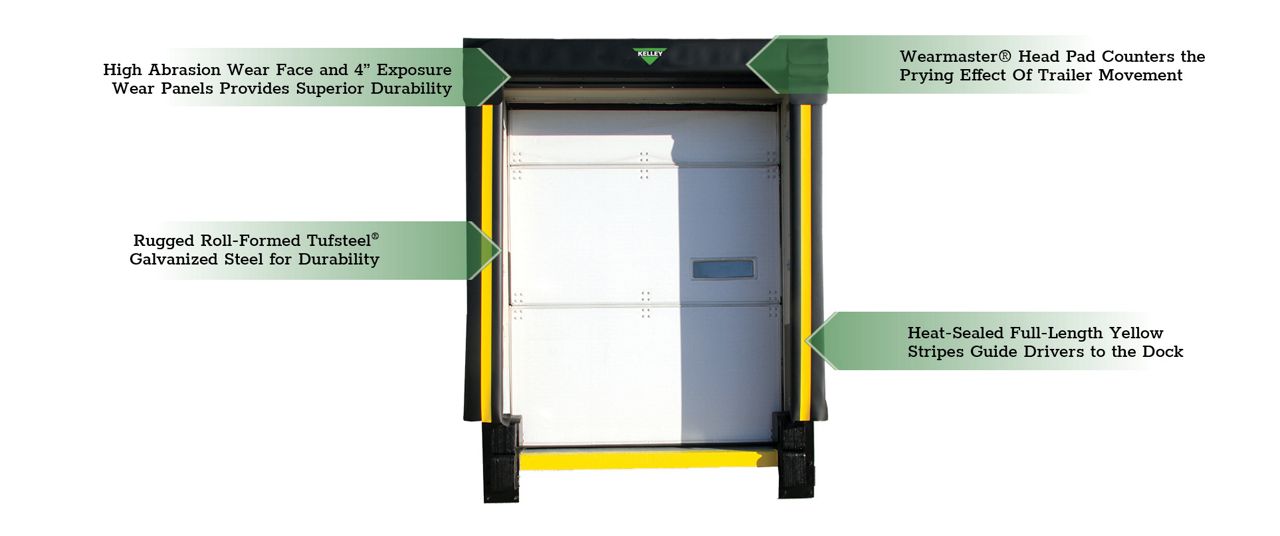

The ADS-HP Series ArmorGuard High Abrasion Fabric Dock Seal With Head Pad with green callout boxes highlighting key features.The ADS-HP Series ArmorGuard High Abrasion Fabric Dock Seal With Head Pad with green callout boxes highlighting key features.

  • ADS-HP Series ArmorGuard High Abrasion Fabric Dock Seal With Head Pad Design Features

    • SHARC™ full height wear face covers base material on side pads, providing superior abrasion and wear resistance, and eliminating the need for side pad wear pleats
    • Head Pad includes full-width SHARC™ wear face and 4” exposure wear panels on corners where the toughest contact with trailers occurs
    • Exclusive WearMaster® Head Pad counters the prying effect of trailer movement and yard spotters
    • Exclusive heat-sealed, full-length yellow guide stripe is embedded in SHARC™ fabric, effectively welding the two materials together (a superior process versus conventional sewing)
    • Exclusive roll-formed, galvanized steel backer extends product life and is superior to wood construction
    • Highly resilient open-celled polyurethane foam keeps original shape and compresses easily to extend the life of the seal
    • 3-year limited factory warranty against defects in materials and workmanship
