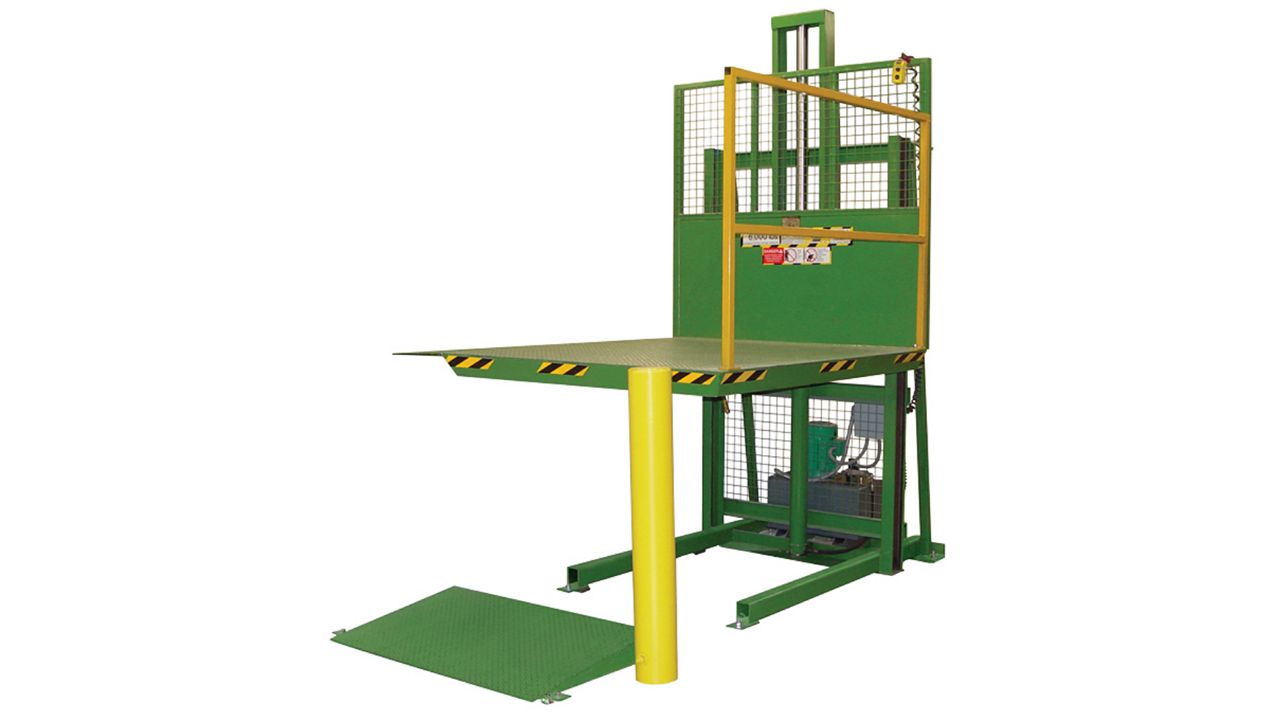

KRL Series Rail Lift
The Kelley KRL Series Rail Lift is a cost-efficient, powered loading dock solution when a surface-mounted lift is required. Kelley rail lifts are completely self-contained, easy to relocate and are simple, fast and inexpensive to install. Kelley Rail Lifts provide a versatile, cost effective solution to move people and products on the loading dock where space is limited and a surface mounted lift is required. Rail Lifts can accommodate a variety of vehicle sizes as well as ground level loading for superior efficiency and increased productivity.

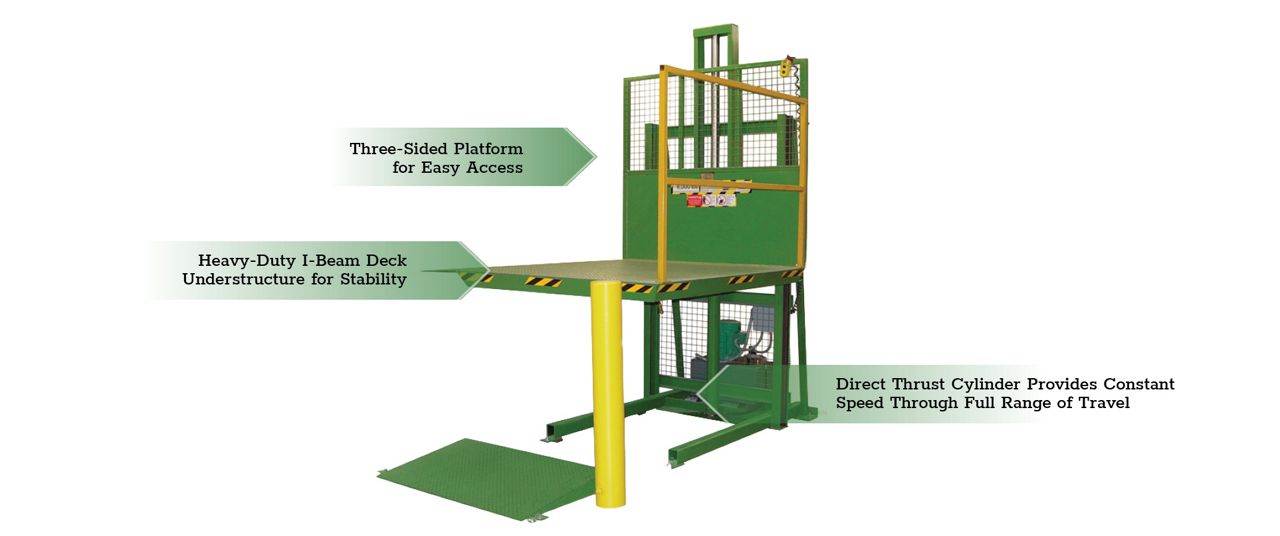

KRL SERIES RAIL LIFT DESIGN FEATURES
- Three-sided platform
- Heavy-duty I-beam deck understructure
- Excellent end-load stability in fully raised position
KRL Series Rail Lift Features
KRL SERIES RAIL LIFT DESIGN FEATURES
- Three-sided platform
- Heavy-duty I-beam deck understructure
- Excellent end-load stability in fully raised position
- NEMA 4X push-button controller with 15′ cord
- Superior speed-to-horsepower ratio compared to scissor-style dock lifts
- Direct thrust cylinder provides constant speed through full range of travel
- Hydraulic system pressure gauge
- Available in 4K – 6K lb. capacities
Available Options
- Upper Travel Limit Switch
- In Motor Warning Beeper and Flashing Light on a Post X 60” High or Wall Mounted on Bracket
- Interlocking Gate
- Aluminum Bridges
- Larger Steel Bridges
- Power Pack Cover
Standard Deck Sizes
- 48×60
- 48×72
- 60×60
- 60×72
- 60×84
- 60×96
- 72×72
- 72×84
- 72×96
- 72×120
- 72×144
