Kelley

KDL Series Hydraulic Dock Lift

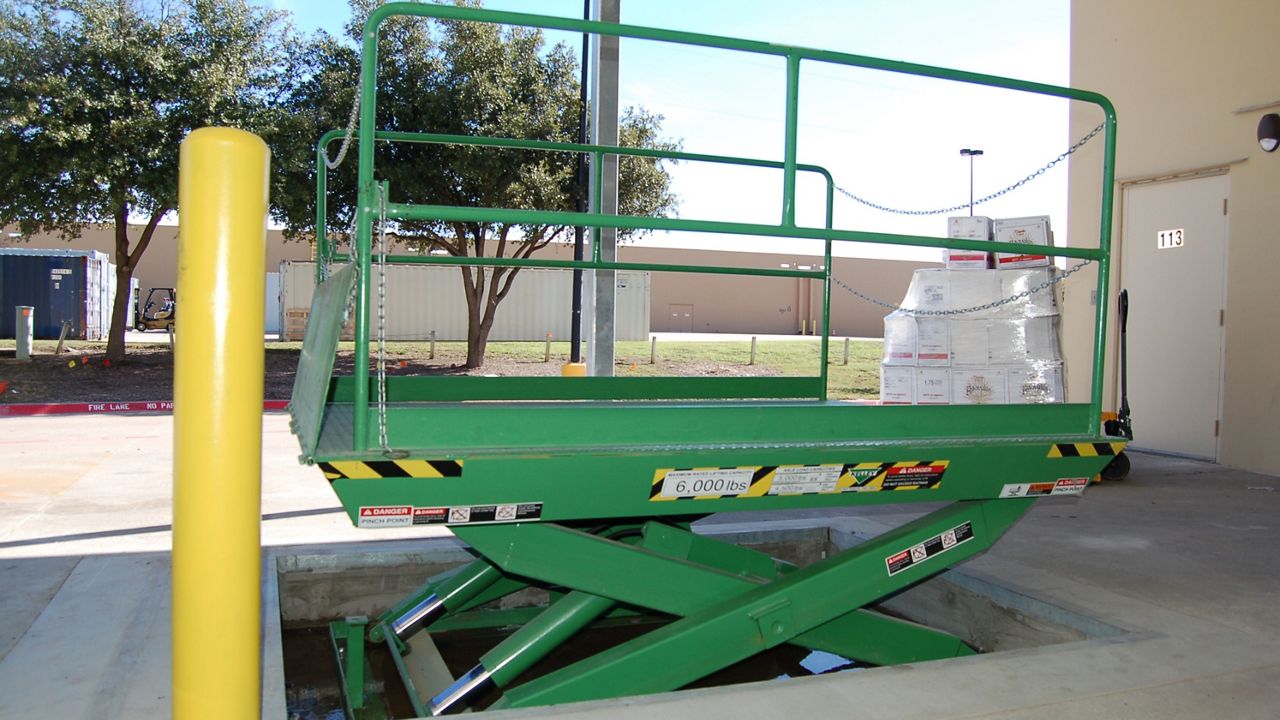

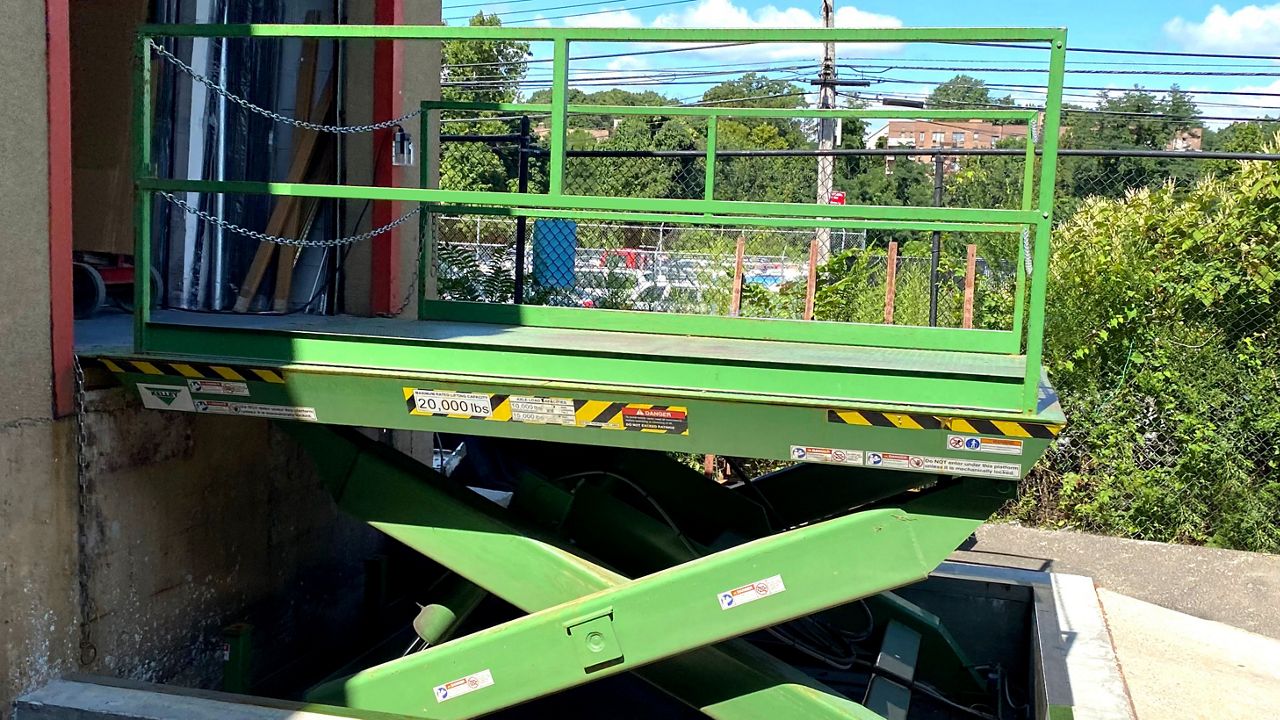

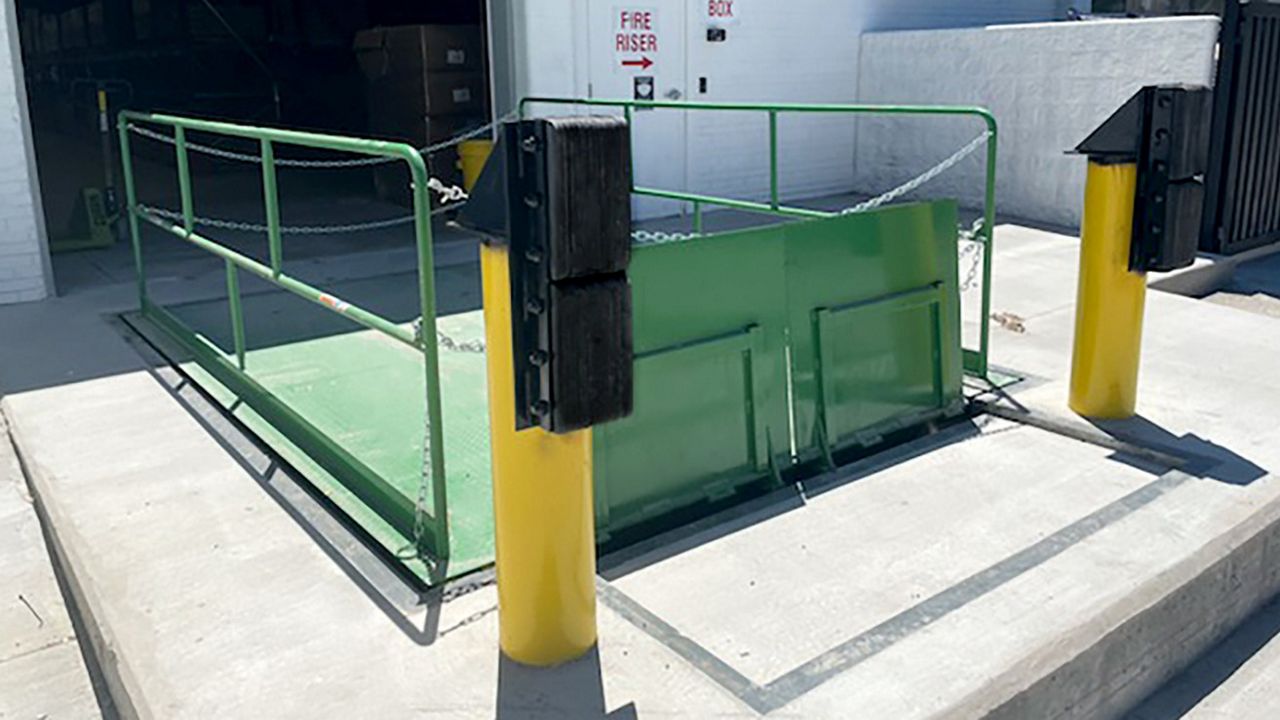

Kelley KDL Series Hydraulic Dock Lift helps keep loading operations more efficient, especially where space is restricted. Dock lifts are a cost-efficient alternative to expensive and space-consuming truck well recesses and concrete ramps.  The Kelley KDL Series Hydraulic Dock Lift can accommodate a wide variety of truck styles; from 20″ step vans or pick-up trucks to high cube vans, standard semi-vehicles and 60″ high bed vehicles.  The lift can be pit or surface-mounted inside the building or in front of the loading dock. (Note: surface-mounted dock lifts can be relocated if used in applications where a pit or permanent installation is prohibited.)

KDL SERIES HYDRAULIC DOCK LIFT DESIGN FEATURES

  • High tensile strength, structural tubing construction for maximum stability
  • Velocity fuses on lift cylinders prevent lift from free falling in the event of hydraulic failure
  • Pre-wired NEMA-4X push-button control panel

KDL Series Hydraulic Dock Lift Features

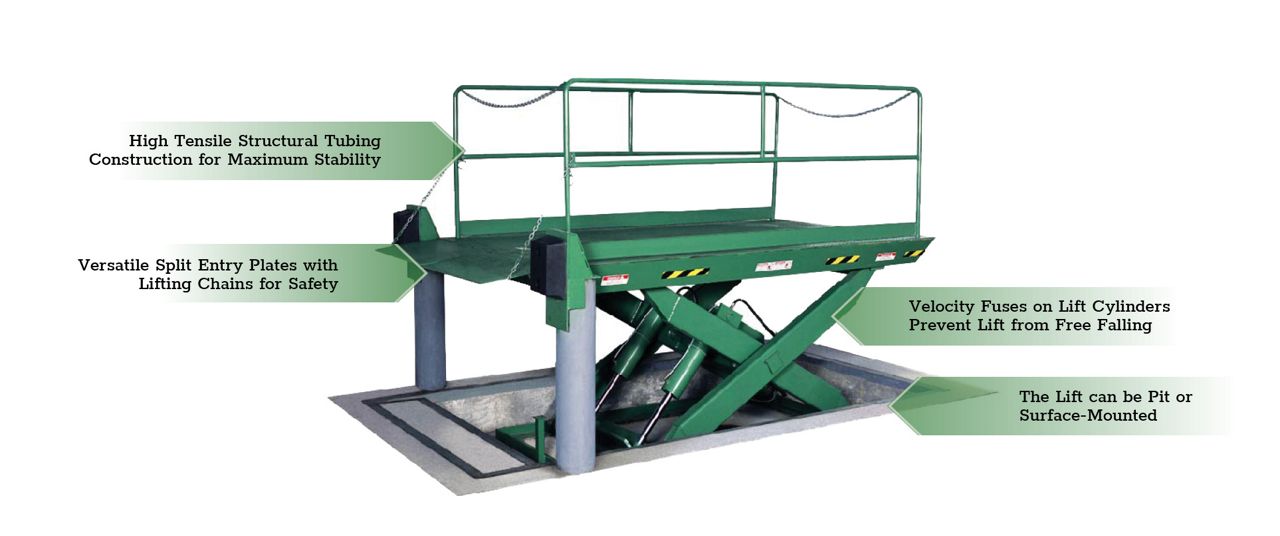

The KDL Series Hydraulic Dock Lift with green callout boxes highlighting key features.The KDL Series Hydraulic Dock Lift with green callout boxes highlighting key features.
    • High tensile strength, structural tubing construction for maximum stability
    • Velocity fuses on lift cylinders prevent lift from free falling in the event of hydraulic failure
    • Pre-wired NEMA-4X push-button control panel
    • Versatile, split entry plates with lifting chains and entry ramp
    • Removable, mandrel formed tubing handrails
    • Maintenance strut
    • Removable lifting lugs
    • Meets ANSI MH29.1 safety requirements for industrial scissor lifts
    • Available in 4K – 40K lb. capacities
    • Electric Toe Guards
    • Aluminum Bridge Plates
    • Post Office Option Package
    • Hot Dipped Galvanized
    • Spring-assisted Bridge
    • In-motion Warning Beeper and Flashing Light
    • Roller Curtains
    • Accordion Bellow Skirting
    • Mechanical Pop-up Stop
    • Biodegradable Oil
    • Special Sizes

    Standard Platform Sizes

    • 48×96
    • 60×96
    • 72×96
    • 72×108
    • 72×120
    • 84×96
    • 84×108
    • 84×120
    • 96×96
    • 96×108
    • 96×120
  • Dock_&_In-Plant_Lifts_Product_Brochure(PDF, 1 MB)
    Kelley_Lifts_Brochure(PDF, 1 MB)
