Kelley

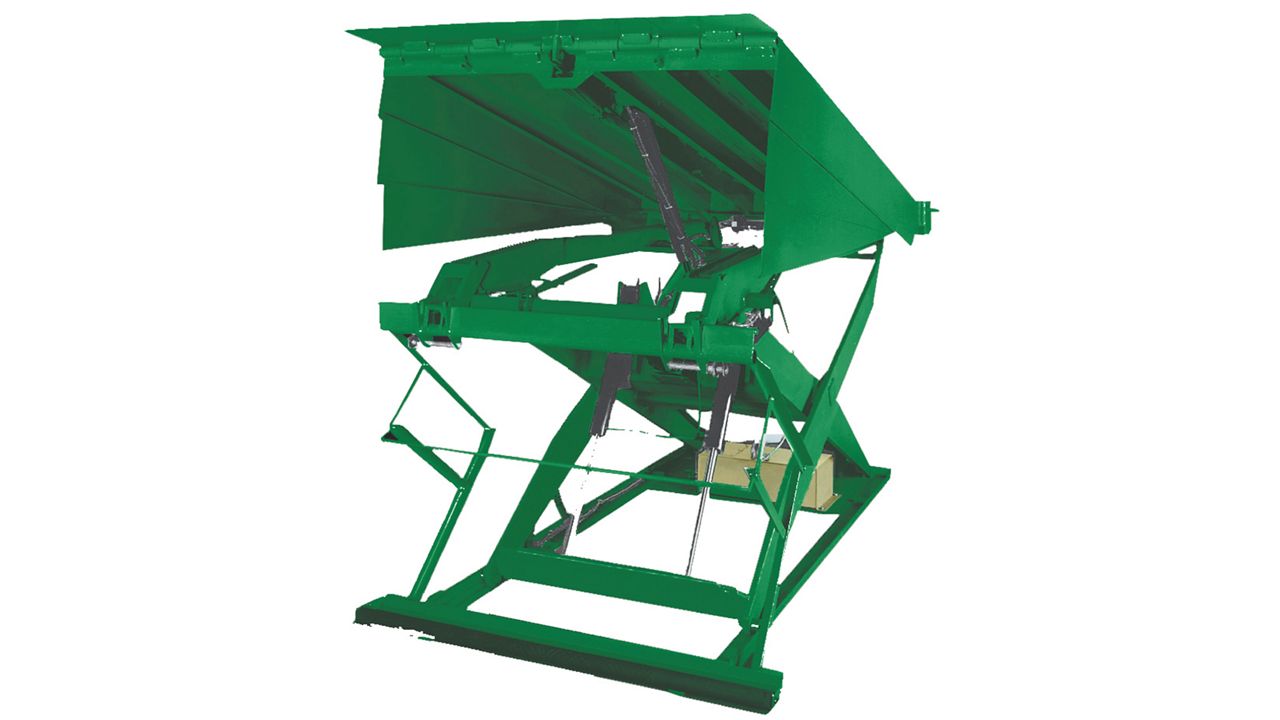

KD Series KOMBO DOCK Lift

The Kelley KD Series KOMBO DOCK Lift marries the speed and efficiency of a hydraulic dock leveler with the versatility of a heavy-duty scissor lift, eliminating the need for dedicated docks equipped with expensive concrete ramps or dock lifts.  This dock leveler and scissor lift combination can service almost any “above grade” application.The KOMBO DOCK Lift can service almost any style of trailer or van from grade-level to 59” (1,499 cm) above grade. Unlike standard scissors lifts, the Kelley KOMBO DOCK’s hydraulically powered dock lip ensures faster cycling times. With up to 20,000lb. (9,072 kg) lifting capacity the KOMBO DOCK can handle the toughest loads while also providing dock-to-grade level forklift access.

KD SERIES KOMBO DOCK LIFT DESIGN FEATURES

  • High-performance dock leveler
  • Below-dock operation
  • Scissors lift versatility

KD Series KOMBO DOCK Lift Features

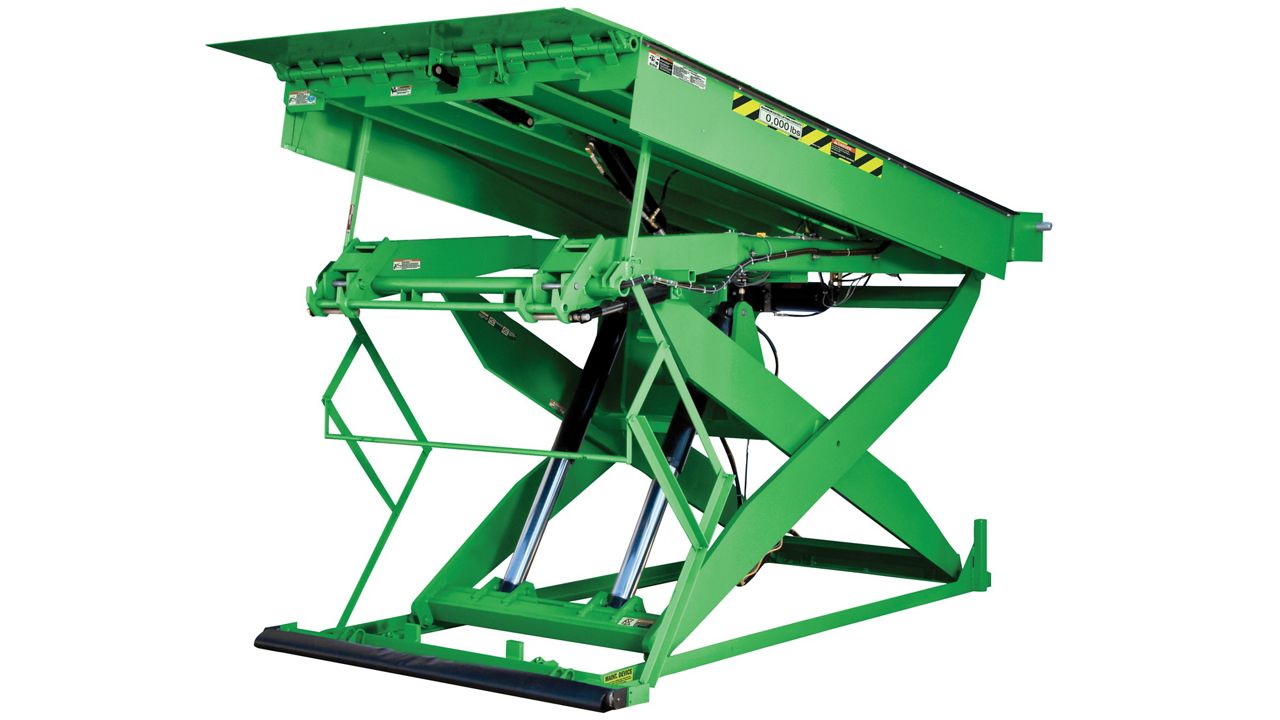

The KD Series KOMBO DOCK Lift with green callout boxes highlighting key features.The KD Series KOMBO DOCK Lift with green callout boxes highlighting key features.

  • KD SERIES KOMBO DOCK LIFT DESIGN FEATURES

    • High-performance dock leveler: Same performance benefits of a hydraulic dock leveler such as regenerative hydraulics, powered lip control, safety velocity fuse and push-button controls.
    • Below-dock operation: A scissor lift eliminates the steep grade differences between the vehicle bed and the leveler deck, providing safe, level, below-dock operations.
    • Scissors lift versatility: Unlike standard scissor lifts, the hydraulically powered dock lip ensures faster cycling times.
    • Up to 20K lb. capacity

  • Available Options

    • 20” Lip
    • Safety Barrier Lip
    • Biometric Switch Thumb Reader
    • Internal Lift Powerpack with Flood Switch
    • NEMA 4 Control Panel



    Accessories

    • Manual Safety Gate
    • Powered Safety Gate
    • Master Control Panel
    • Combination Control Panel
    • Wheel Restraint
  • KOMBO_DOCK_Long_Form_Spec(PDF, 112 KB)
    KD_Series_KOMBO_DOCK_Product_Spec(PDF, 163 KB)
    Dock_&_In-Plant_Lifts_Product_Brochure(PDF, 1 MB)
    Kelley_Lifts_Brochure(PDF, 1 MB)

Frequently Paired With These Products

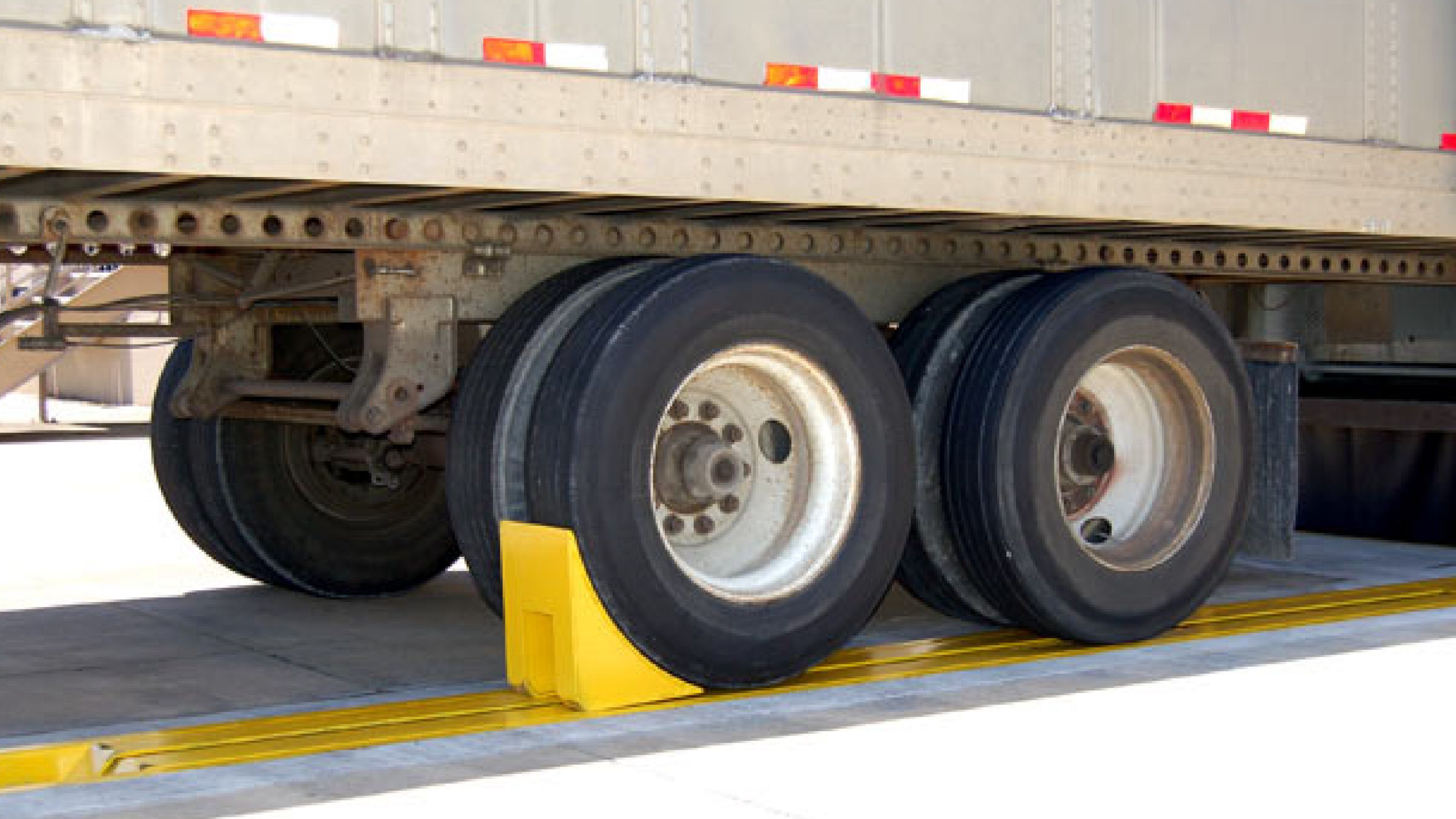

  • AC Series AUTO CHOCK® In-Ground Wheel Restraint

    Permanent, automatic restraint that provides continuous restraining force to the chocked wheel.

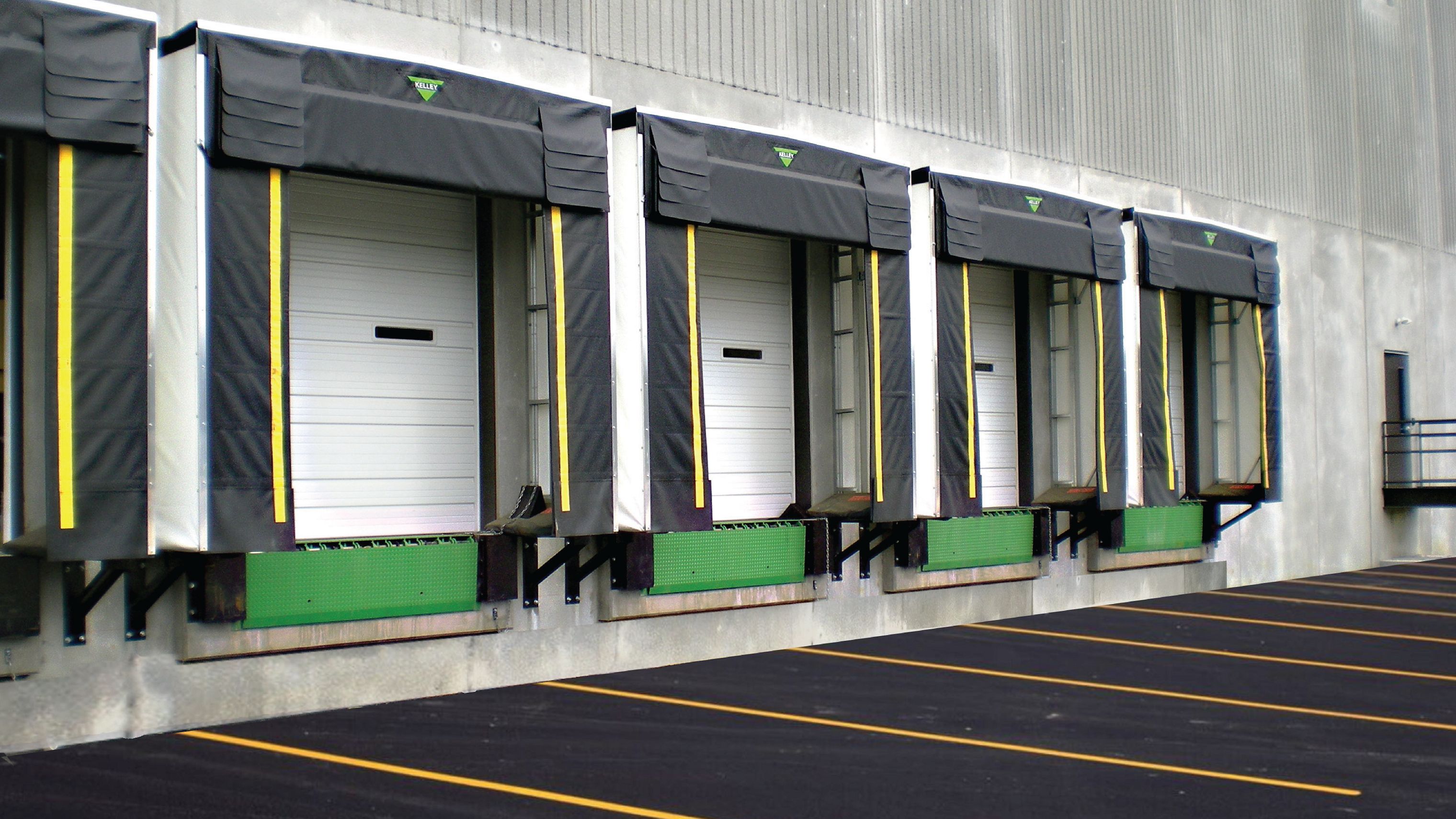

  • TS Series Rigid Frame Dock Shelter
