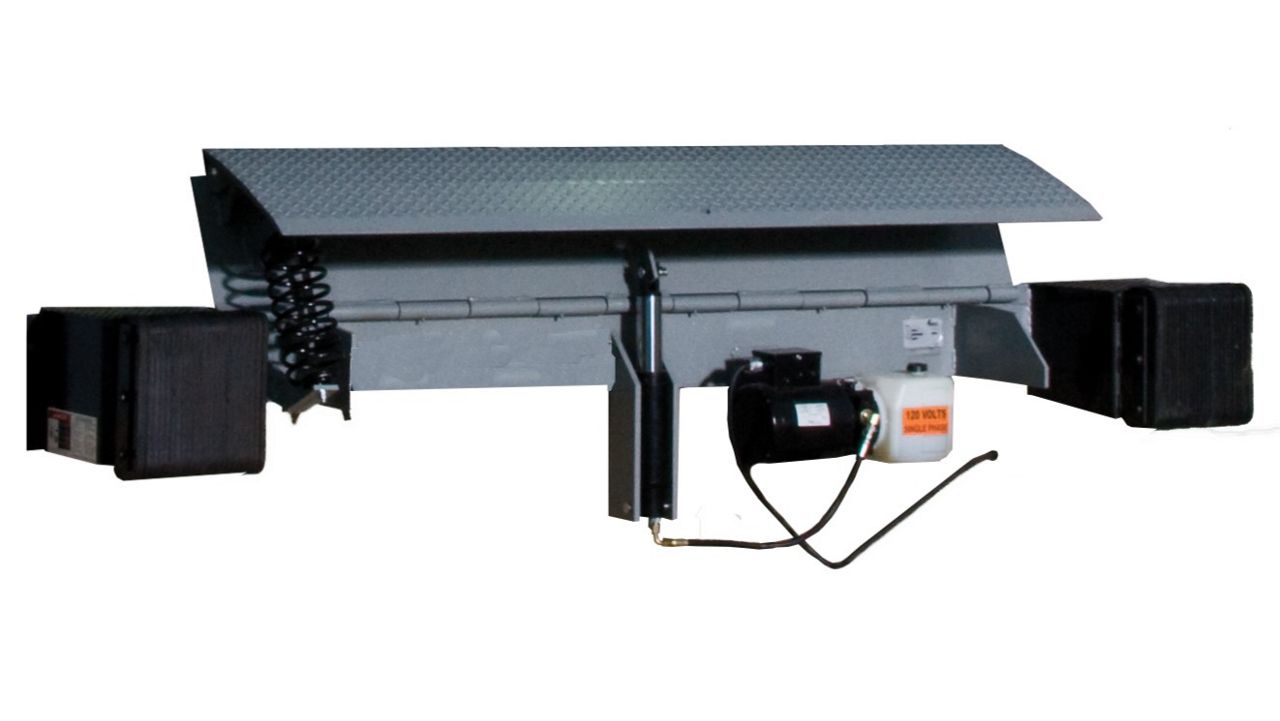

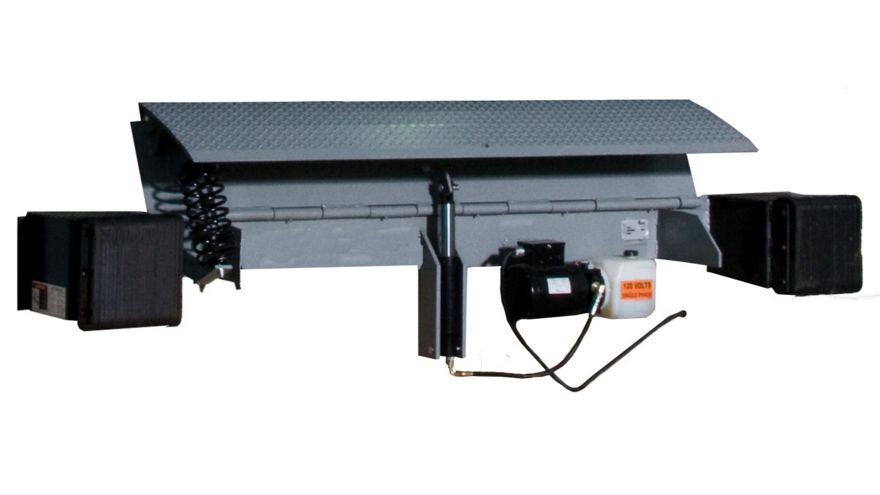

KH Series Hydraulic Edge-of-Dock Leveler
An efficient and reliable hydraulic lifting system and push-button operation make the Kelley KH Series Hydraulic Edge of Dock Leveler a top choice. The KH Series includes laminated loading dock bumpers, an integral maintenance strut and all the other premium features Kelley Edge of Dock levelers are known for, to provide superior efficiency, durability and powered performance compared to other Edge of Dock systems in the industry.

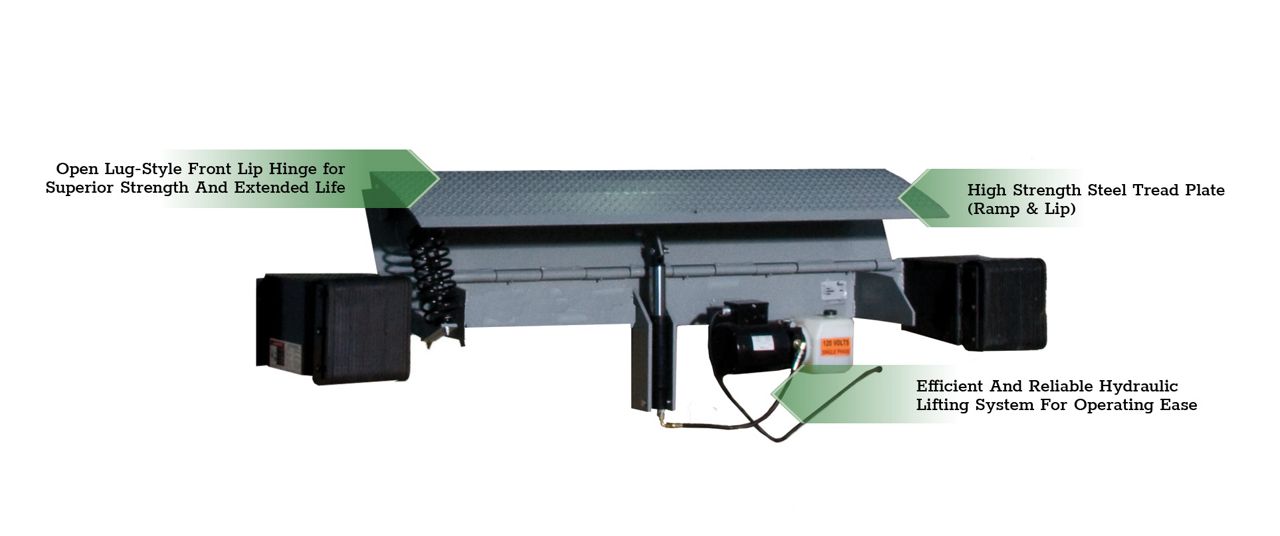

KH SERIES HYDRAULIC EDGE OF DOCK LEVELER DESIGN FEATURES
- Push button operation eliminates manual lifting
- Efficient and reliable hydraulic lifting system includes a 2″ (51 mm) bore single acting cylinder with 1″ (25 mm) diameter chrome-plated rod
- Exclusive Lug Style Lip Hinge provides superior strength and extended life
- High Strength Steel Tread Plate (Ramp & Lip)
- Robotic Welding for improved strength, quality and consistency
KH Series Hydraulic Edge-of-Dock Leveler Features
- 20K lb (9.9K kg)
- 30K lb (13.6K kg)
- Three Phase Motor
- 17” (432 mm) Lip for refrigerated trailers
- Post Office Model with 2” (51 mm) cart guard
- Steel Faced Bumpers
- Tapered Lip (tapered on each side)
- Recessed Pit Model
- Special Surface Finish
- Bumper Projection 16”, 17” or 18” (406, 432 or 457 mm)
Bumper Options
- Unit to include two 4”x10”x12” (101 mm x 254 mm x 305 mm) tire laminated bumpers mounted to steel block assemblies
- Bumper projections available in 16”, 17” and 18” (406, 432 & 457 mm).
